Overview of Animator

REQUIREMENTS:
  • Sketchup version: SU2017 and above
  • Platform: Windows and Mac OSX
  • LibFredo6: v11.5 or above
  • Usage: Free for the time being
  • Expiration: 31 Jan 21

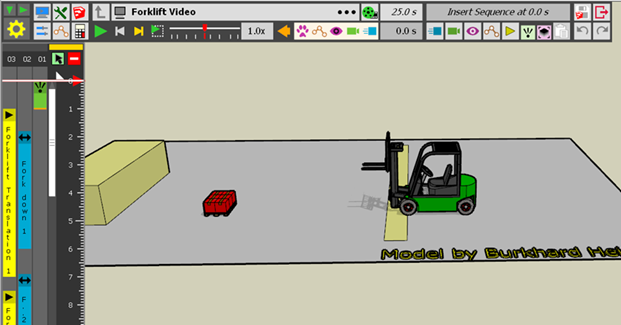

Animator is a script dedicated to the animation of Sketchup models. It provides a parametric, interactive framework to control movements of objects and cameras along a timeline.


Animations are based on the following concepts:

  • Sequences are reusable definitions of movements for objects (such as translation, rotation, spin, scaling, explosion, ...) and for cameras (still view, traveling camera, ...)
  • Clip elements are instances of Sequences placed in the timeline. When you instantiate a Sequence as a Clip Element, you can then change a few of its parameters, such as duration, easing, ... You can create several clip elements out of a single sequence.
  • A Sequence can contain other Sequences, by grouping. This is called a Clip.
  • By convention the topmost clip is called a Film.


Animator is based on a recursive hierarchical model, so that a sequence can contain other sequences and sequences can be freely re-used to create one or several clip elements (e.g. instances of sequences) at any level.

This is quite similar to the Sketchup hierarchical framework for Components; think of:

  • Sequence --> Component definition (so reusable)
  • Clip Element --> Component Instance (so one or several)
  • Clip --> Component containing other components (so both instance and definition underneath)
  • Film --> Model

Although this may be abstract to you (as it is where you are beginner in Sketchup), this recursive hierarchical model the base for re-usability and for isolating pieces of animation. For instance

  • if you design a car movement, you will create a translation for the body and spinning for the 4 wheels. By encapsulating these unit movements into a Clip, you can re-use the Clip to move the car forward and backward by any amount, without redoing the body translation and wheel spinning each time.
  • if later you wish to add extra animation when the car moves, say a rotation of the brake pedal at the end of the car movement, you will have to do it once only, and it will apply to all car move instances.

Animator is parametric. Movement and cameras are recorded in Animator with their exact parameters (say direction / offset for a translation), so that it is possible to modify these parameters interactively.

Animator allows to record animations in context, which is easier in most cases. This is why this is the default. This means for instance that if you record an object Moving right, then further in the timeline, you can record the Movement Left for the same object in the context where the object is already moved Right. Animator however offers the option to record or play animation outside context (i.e. just the clip element selected or just the sequence under edition).

Although you can play animations within Animator, the objective is to generate quality videos at any specified frame rate. You will need to install an external tool, FFmpeg (see this post for details).

Animator is designed to support rendering for Animations (films, clips and sequences). Rendering software current supported are:

  • TheaRender v1.5: from Animator and from TheaRender
  • AmbientOcclusion Ex, v1.9.5 and above: From Animator
  • SketchFX Ex, v1.0.6 and above: From Animator
  • Twilight Render Pro, v2.5.5 and above: From Animator
  • VRay, v4.2 and v5.0: From Animator


Features in the current release of Animator

  • Object transformations: translation, rotation, spin, screw, explosion, scaling, along path, apparition, all with easing and oscillation
  • Cameras: Still views, Scene views, Tracking camera, all with fade-out
  • Visual Effects: Layer visibility, rendering style, shadow, Layer on-off, visual zoom, visual extents, trajectory, visual target
  • Kinematic Constraints: Same Movement, Rigidity, Global Instance
  • Visit Controller: not finished and therefore disabled as of Animator v2.0


Discussion forum

Links to the Sketchucation forums
Sub-forum dedicated to Animator Main Post Latest Release


Installation of Animator

IMPORTANT: Make sure that you have first installed LibFredo6.

Animator is released as a regular RBZ extension file on the Sketchucation Site.

To download the RBZ file, use the red button on the right side of this page:

  • Download If your are already logged in.
  • Log in to get it! otherwise, in order to log in or to register to Sketchucation as a new user (this is FREE). Then you will be able to download the RBZ file.

Then, you can install the RBZ file from within Sketchup, via the Sketchup Extension Manager

If you are not familiar with the installation of Sketchup extensions and Sketchucation, it is advised to watch the video LibFredo6 installation.

IMPORTANT: Whatever way you choose, you MUST quit and restart Sketchup to get Animator (and LibFredo6) properly loaded.

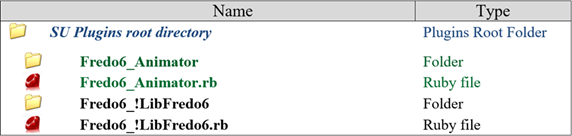

After the installation, you should have the following footprint in the Sketchup Plugins directory:

  • Language: English
  • Menus: by default, it is installed in Tools > Fredo6 Collection > Animator...
  • Icon toolbar: Fredo6_Animator

Permission to use this software for any purpose, subject to license, is hereby granted

Distribution of this software for any purpose is subject to:

- the expressed, written consent of the author

- the inclusion of the present copyright notice in all copies.

I will publish additional tutorials in this section. In the meantime, you can find a set of older tutorials, some with the old user interface of Animator at dedicated thread at Sketchucation

Tutorial 1 - Basic concepts of Animator

The following tutorial video is rather long (50 minutes), but is worth watching if you wish to understand the core concepts of Animator. So take a breath and watch it by small chunk... And it should play well in full screen mode.

No written documentation at the moment.

Please watch the video tutorials.

Links to Sketchucation Forum: Main Post   Latest Release
