  • Dummy Article For Plugin Page

Quick selection    v1.0.1

  • Overview
  • Documentation
  • Release Notes

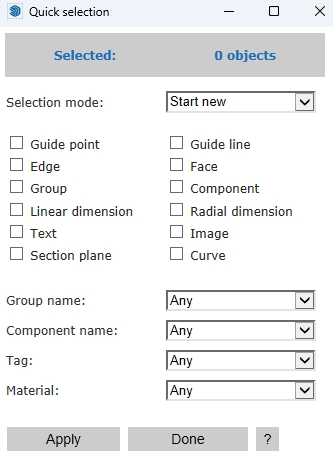

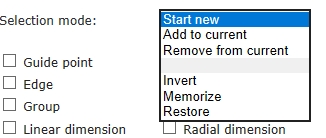

Selection mode : There are three main options and three other options :

• Start new (default): clears any previous selection and start selecting objects from scratch
• Add to current : adds objects to the current selection
• Remove from current : removes objects from the current selection.


• Invert : inverts the current selection. To use it, just hit the ‘Apply’ button.
• Memorize : saves the current selection internally for further use. A memorized selection is valid for the session or until another selection is memorized.
• Restore : restore a memorized selection, if any.

Buttons : When the ‘Apply’ button is pressed, objects are added/removed to the selection, their count is displayed on top of the dialog. It is also used for inverting, memorizing or restoring a selection When the ‘Done’ button is pressed, the dialog is closed, and the current selection remains.

Please see DBUR_QuickSelectionHelp.pdf in the Resources folder or click on the '?' button of the dialog

This is a rework of an old script developed in 2015: Web dialog added, french version addes More criteria to choose from
