  • Dummy Article For Plugin Page

FredoBatch    v1.4a

  • Overview
  • Documentation
  • Release Notes

Overview of FredoBatch

REQUIREMENTS:
  • Sketchup version: SU2017 and above
  • Platform: Windows and Mac OSX
  • LibFredo6: v15.0a or above
  • Usage: Free for the time being
  • Expiration: 31 Dec 2025

FredoBatch executes a set of tasks on a set of files:

  • a Task is based on Ruby code, with a top method as an entry point. Task can be built-in (provided with FredoBatch) or custom (configured by the user).
  • a Set of Files is specified as a combination of lists of files (File List) or open set of files with wild card and filtering on names and extensions (File Set).

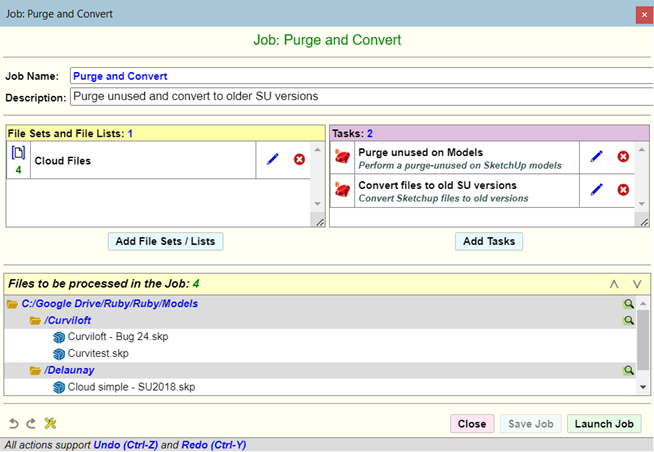

  • a Job is the combination of sets of files and tasks. This is what is executed by FredoBatch.FredoBatch provides conflict detection and management, allowing team members to be aware of what others are changing to the model, and deciding on how to resolve conflicts if two or more team members modify concurrently the same object(s).


    Videos



    Discussion forum

    Links to Sketchucation Forum: Main Post Latest Release


    Installation of FredoBatch

    IMPORTANT: Make sure that you have first installed LibFredo6.

    FredoBatch is released as a regular RBZ extension file on the Sketchucation Site.

    To download the RBZ file, use the red button on the right side of this page:

    • Download If your are already logged in.
    • Log in to get it! otherwise, in order to log in or to register to Sketchucation as a new user (this is FREE). Then you will be able to download the RBZ file.

    Then, you can install the RBZ file from within Sketchup, via the Sketchup Extension Manager

    If you are not familiar with the installation of Sketchup extensions and Sketchucation, it is advised to watch the video LibFredo6 installation.

    IMPORTANT: Whatever way you choose, you MUST quit and restart Sketchup to get FredoBatch (and LibFredo6) properly loaded.

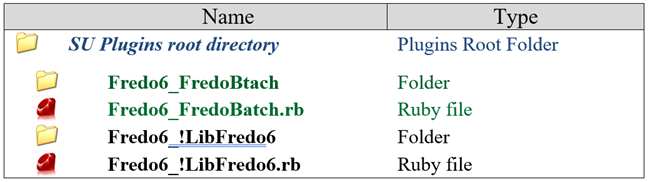

    After the installation, you should have the following footprint in the Sketchup Plugins directory:

    • Language: English
    • Menus: by default, it is installed in Tools > Fredo6 Collection > FredoBatch...
    • Icon toolbar: FredoBatch

    Permission to use this software for any purpose, subject to license, is hereby granted

    Distribution of this software for any purpose is subject to:

    - the expressed, written consent of the author

    - the inclusion of the present copyright notice in all copies.

Documentation

Full Documentation is available (English) in the PDF below

FredoConnect - User Manual - English - v1.1 - November 2024.pdf


Built-in task: Model Gallery

Links to Sketchucation Forum: Main Post   Latest Release

Release History

FredoBatch v1.4a - 01 Jun 25: Extension of validity

FredoBatch v1.3a - 31 Dec 24: Bug fixing and built-in task Export 3D

FredoBatch v1.2a - 06 Dec 24: Bug fixing and built-in task Model gallery

FredoBatch v1.1a - 26 Nov 24: Initial Public Release
