FredoGhost    v1.2b

  • Overview
  • Quick Start
  • Documentation
  • Release Notes

Overview of FredoGhost

FredoGhost is a Proxy framework for Sketchup: By ‘proxy framework’, I mean the capability to temporarily replace an object by another one, the proxy, and switch back and forth between the original version (REAL) and the proxy version (GHOST).

FredoGhost can be used for 2 main purposes

  • Combine different rendering styles in the same view, for instance, some objects in X-Ray, while others staying natural (like in my old plugin XRaySelection). FredoGhost gives you control of the style and of the objects you want to modify.
  • Make your model lighter to work with, since you can substitute proxies with lighter geometry (including just its bounding box) instead of the finished objects. You have some methods to help in that, in particular the 'Proxy' method and the concept of frozen ghosts.

FredoGhost allows to select the objects you want to ghost and to convert them individually to their ghost and Real versions. The ghost methods provided can be parameterized at will. It can also associate a particular ghosting state to a Scene, which can be useful both for individual rendering and a faster working environment.

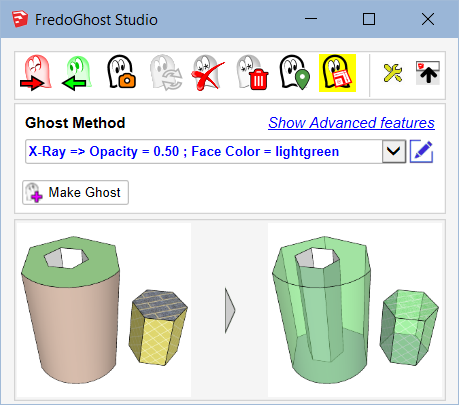

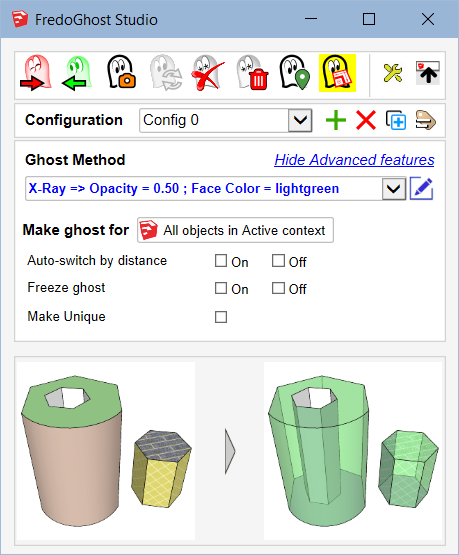

All commands can be accessed from the FredoGhost Studio dialog box, which exists in 2 forms: basic features and advanced features.

Note that FredoGhost only works with SU2017 and above.

IMPORTANT: For a period, it is advised to make a safe copy of your model, as there might be bugslats or other issues. This will ensure that you keep the main objects of your model in their real form.


Discussion forum

Links to Sketchucation Forum: Main Post Latest Release


Installation of FredoGhost

IMPORTANT: Make sure that you have first installed LibFredo6 v8.6 or above.

FredoGhost is released as a regular RBZ extension file on the Sketchucation Site.

To download the RBZ file, use the red button on the right side of this page:

  • Download If your are already logged in.
  • Log in to get it! otherwise, in order to log in or to register to Sketchucation as a new user (this is FREE). Then you will be able to download the RBZ file.

Then, you can install the RBZ file from within Sketchup, via the Sketchup Extension Manager

If you are not familiar with the installation of Sketchup extensions and Sketchucation, it is advised to watch the video LibFredo6 installation.

IMPORTANT: Whatever way you choose, you MUST quit and restart Sketchup to get FredoGhost (and LibFredo6) properly loaded.

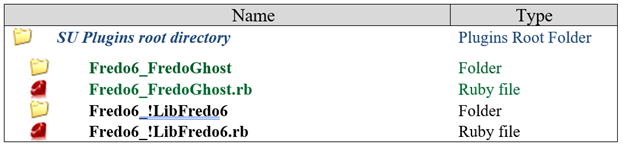

After the installation, you should have the following footprint in the Sketchup Plugins directory:

  • Sketchup versions: 2017 and above - certified for SU2019
  • Platform: Windows and Mac OSX
  • Language: English
  • Menus: by default, it is installed in Tools > Fredo6 Collection > FredoGhost...
  • Icon toolbar: FredoGhost
Credit: all toolbar icons and button images by JClements

Permission to use this software for any purpose, subject to license, is hereby granted

Distribution of this software for any purpose is subject to:

- the expressed, written consent of the author

- the inclusion of the present copyright notice in all copies.

Overview of the main features of FredoGhost

The silent video below gives short presentation of main features and workflow for FredoGhost.


Key concepts and basic operations in FredoGhost


Ghost Method Editor


Scene Capture


Layout Compatibility mode


Advanced Features: Working with Components


Advanced Features: Frozen Ghosts


Advanced Features: Sensitivity to Distance


Advanced Features: Ghost Configurations


Under the hood..

Documentation

Here is the documentation, in English, updated for version 1.2.

FredoGhost - User Manual - English - v1.2 - 03 Jun 19 - Overview.pdf

FredoGhost - User Manual - English - v1.2 - 03 Jun 19 - Ghost Methods.pdf

Note: If you drop the PDF doc files into the Plugins directory, you can access them from within Sketchup via the menu Windows > Tools > Fredo6 Collection... > FredoGhost > Documentation...

Links to Sketchucation Forum: Main Post   Latest Release


Release History

FredoGhost 1.2b – 18 Jul 19: Extension expiration date

FredoGhost 1.2a – 06 Jun 19: Initial public release
