FredoScale v3.6a
- Overview
- Quick Start
- Documentation
- Release Notes
Overview of FredoScale
- Sketchup version: SU2017 and above
- Platform: Windows and Mac OSX
- LibFredo6: v14.3b or above
- Sketchucation ExtensionStore: v4.4.0 or above
- Usage: Paid, Licensed under Sketchucation SCFLicense
- Free Trial period (full features): 30 days from first usage
- Perpetual license (3 seats): $15
- Fredo6Bundle2022 license (8 plugins): $50
- Information on licensing extensions at Sketchucation: this post

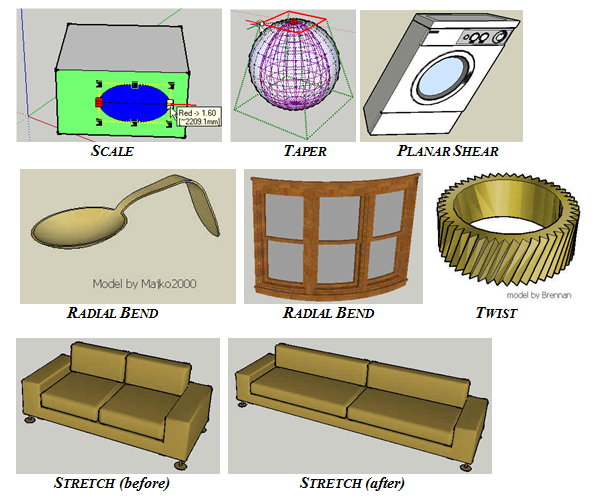

With FredoScale you can orientate the selection box around a set of objects and interactively apply a number of geometric transformations, such as Scaling, Tapering, Stretching, Planar Shear, Twisting, Bending and Rotation. By extension, some transformations can be performed without a selection box.
Discussion forum
Links to Sketchucation Forum: Main Post Latest Release
Installation of FredoScale
FredoScale is released as a regular RBZ extension file on the Sketchucation Site.
To download the RBZ file, use the red button on the right side of this page:
- Download If your are already logged in.
- Log in to get it! otherwise, in order to log in or to register to Sketchucation as a new user (this is FREE). Then you will be able to download the RBZ file.
Then, you can install the RBZ file from within Sketchup, via the Sketchup Extension Manager
If you are not familiar with the installation of Sketchup extensions and Sketchucation, it is advised to watch the video LibFredo6 installation.
IMPORTANT: Whatever way you choose, you MUST quit and restart Sketchup to get FredoScale (and LibFredo6) properly loaded.

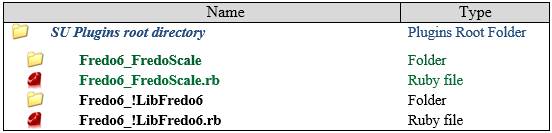

After the installation, you should have the following footprint in the Sketchup Plugins directory:
- Sketchup versions: SU2017 and above
- Platform: Windows and Mac OSX
- Language: English, French and partial in Spanish, German, Italian, Korean, Chinese, Japanese (thanks to the kind translators)
- Menus: by default, it is installed in Tools > Fredo6 Collection > FredoScale…
- Icon toolbar: NO Toolbar
Permission to use this software for any purpose and without fee is hereby granted Distribution of this software for any purpose is subject to: - the expressed, written consent of the author - the inclusion of the present copyright notice in all copies. |
Generic usage of FredoScale
Here is generic way to use the plugin for all tools:
- Select one or several objects (faces, edges, groups or components)
- Click on the icon of one tool, for instance Scaling
- You can orientate the selection box:
- Arrow Up will align on model axes
- Arrow Left and Arrow Right will cycle through axes of components at highest level
- Arrow Down will restore the initial alignment when selecting
- Gently click and drag on the handles to perform the deformation. Toggle the CTRL key to perform the deformation from the center.
- You can type relevant values in the VCB or via a dialog box (TAB key)
For Twist and Bend, F4 toggles a Slicer on and off
For Stretch, F4 toggles a Divider on and off
It is a good idea to check the contextual menu to see available options, as well as to have a look at the PDF documentation.
Video with the Scale and Taper tools
Video with the other tools
There are also a few video tutorials publicly available
And more specifically on the Box Stretching functionality

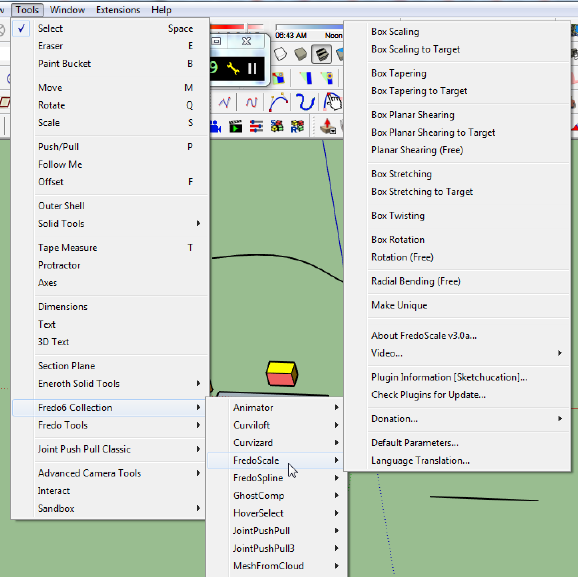

Menu for FredoScale
By default, FredoScale menu entry is in Tools > Fredo6 Collection > FredoScale...
Documentation
The documentation might be a little bit outdated, but gives you an idea of most features of Fredoscale for Free Scaling and Tapering: FredoScale User Manual - English - v2.5 - 01 Sep 13.pdf
FredoScale User Manual - French - v2.5 - 01 Sep 13.pdf
There is also a quite comprehensive tutorial on FredoScale by Tutorials Up
Custom Ruby commands to launch FredoScale
If you have a custom toolbar (or a plugin for that), you can safely launch the FredoScale tools with the following Ruby code:
F6_FredoScale.launch_action(action_code)
where action_code is a Symbol (respect the case), with value:
- :ScaleB --> Scale - Box mode
- :ScaleT --> Scale - Target mode
- :TaperB --> Taper - Box mode
- :TaperT --> Scale - Target mode
- :PlanarShearB --> Planar Shear - Box mode
- :PlanarShearT --> Planar Shear - Target mode
- :PlanarShearA --> Planar Shear - Free mode
- :StretchB --> Stretch - Box mode
- :StretchT --> Stretch - Target mode
- :TwistB --> Twist - Box mode
- :RotateB --> Rotate - Box mode
- :RotateA --> Rotate - Free mode
- :RadialBendA --> Radial Bending - Free mode
- :MakeUniqueU --> Make Unique - Utility
If you need the icons, they are in the subfolder Fredo6_FredoScale/IMAGES_Standard.
Links to Sketchucation Forum: Main Post Latest Release
FredoScale 3.6a - 01 Apr 24: Future compatibility
FredoScale 3.5a - 31 Jul 22: Bug fixing and removal of validity period
FredoScale 3.4b - 11 Mar 22: Inferences outside context and updated Chinese translation by Arc
FredoScale 3.4a - 15 Feb 22: Fix a big problem for all to-target tools (Invalid Origin)
FredoScale 3.3a - 13 Feb 22: Compatibility with SpaceMouse
FredoScale 3.2a - 30 Jan 22: QuickLauncher and divider by default for the Stretch tool
FredoScale 3.1a - 18 Dec 18: Workaround to a major bug in SU2022 about the modal dimension dialog box (invoked by TAB)
FredoScale 3.0a - 14 Jan 17: Maintenance release correcting problems introduced in v2.9b
FredoScale 2.9b - 02 Jan 17: Maintenance release (re-)fixing bugs in Radial Bend and Twist for SU2017
FredoScale 2.9a - 24 Dec 16: Maintenance release fixing bugs in Radial Bend for SU2017
FredoScale 2.8a - 13 Nov 15: Maintenance release
FredoScale 2.7a - 19 Oct 14: required for support of non-ascii username in SU14.
FredoScale 2.6b - 05 Feb 14: Fixes a bug on rounding improperly scale factors for Box target mode (signaled by JQL).
FredoScale 2.6a - 27 Nov 13: Release for future Sketchup compatibility
FredoScale 2.5b - 15 Sep 13: Small update fixing a problem preventing the language translation files to load. No functional changes Here is the release start post.
FredoScale 2.5a - 30 Aug 13: Technical update with new naming conventions to comply with Sketchup EWH and LibFredo6 5.2. No functional changes Here is the release start post.
FredoScale 2.4a - 22 Aug 13: Technical update with new naming conventions to comply with Sketchup EWH. No functional changes Here is the release start post.
FredoScale 2.2a - 24 Jul 11: small update to manage the display of handles when some dimensions of the box appear small on the screen (based on a request by Cunningham). Also, the Dice option (activated by F4) is active by default. See release note for details.
FredoScale 2.1a - 12 Jan 11: Technical update along with LibFredo6, with two-phase loading. No functional change, but it is advised to upgrade for support.
FredoScale 2.0i - 08 Apr 10: Same as 2.0h, but includes the Chinese translation.
FredoScale 2.0h - 26 Nov 09: Stable version
