TriangulateAllFaces    v1.2

  • Overview
  • Quick Start
  • Documentation
  • Release Notes

Plugins > TriangulateAllFaces

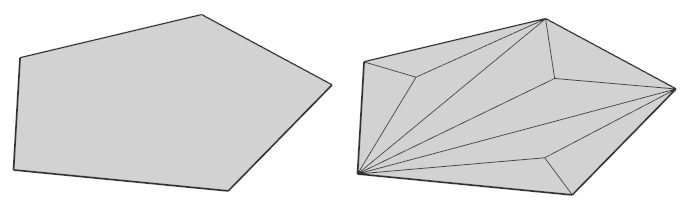

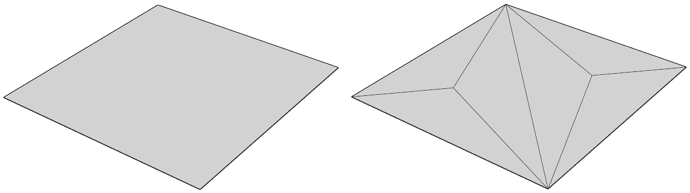

Processes all Selected Faces: Triangulating them, with a 'split' as shown below.

Non-Tris are first Triangulated, then those Triangles are split.

Note: If there is no Selection then ALL Faces in the Current Context are processed.

  • A dialog asks for 'Bisect-Angle' or 'Centroid' mode for the 'split' of the face.
  • The last used mode is reused during that session.
  • UV-mapping is preserved.
  • It is one step undoable.

Plugins > TriangulateAllFaces

Copyright 2013 TIG (c)

Permission to use, copy, modify, and distribute this software for
any purpose and without fee is hereby granted, provided that the
copyright notice appear in all copies.

THIS SOFTWARE IS PROVIDED "AS IS" AND WITHOUT ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

1.2

20131020 Dialog choice of Bisect-Angle or Centroid modes.

1.1

20131018 Triangulation improved. Triangles split 'centrally'.

1.0

20131017 First issue.
