ViewSelect v1.1.7
- Overview
- Quick Start
- Documentation
- Release Notes

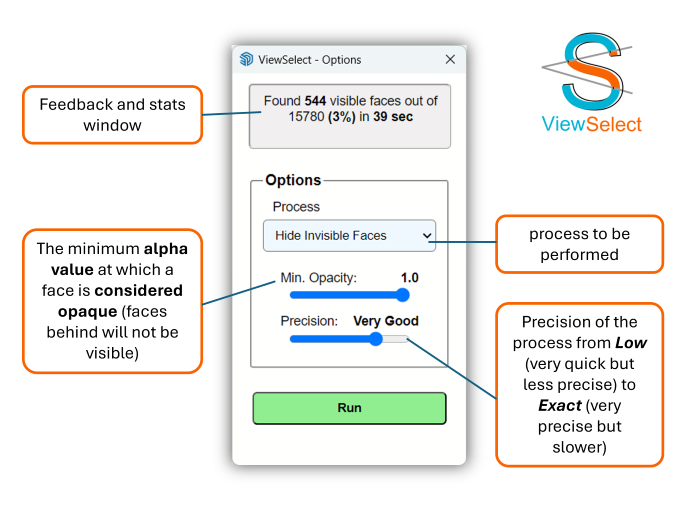

Settings: Process: Choice of the process to run based on the current scene's point of view: - Copy Visible Faces (default): will copy all the fully and partially visible faces in a new component. - Hide Fully Obscured Faces: will hide faces that are fully obscured based on the scene's point of view.
Minimum Opacity: Opacity value of a face that determine if it should be considered as opaque (faces behind it are not visible) or transparent enough (faces behind it are visible). It is the direct equivalent of the alpha value of a material in SketchUp. - min: 0.01 (fully transparent). - max (default): 1 (fully opaque).
Precision: Determines how picky the process will be in term of collecting the visible faces. The Exact option will scan the scene pixel by pixel so as to not miss any face. It is consequently slower. The lower precisions will gradually skip pixels, leading to quicker process but higher chances of missing small details. - Exact: full scene resolution - Very Good (default): 1/2 scene res. - Good: 1/3 scene res. - Fair: 1/4 scene res. - Low: 1/5 scene res.
Run Button: Triggers the process. Wait a bit for the magic to operate!
See https://citygeometrix.com/viewselect/
Release Notes for ViewSelect
v1.1.7 - removed debugging info - renamed main functions for further clarity "Copy Visible Faces (New Component)" and "Hide Fully Obscured Faces"
v1.0.8 - 2 processes: "Copy visible faces to new layer" and "Hide invisible faces" - Opacity and precsision settings - Progress and stats window - Edges in newly created layers are automatically smoothen and soften
