Layout Export Table    v1.1

  • Overview
  • Release Notes

This extension exports the information attached to model elements as CSV files as scheduling tables or tables with quantities.

The tables can be inserted in Layout to improve our drawings.

For the information to be exported it is necessary:

  • All elements should be components.
  • All elements should have an IFC category assigned to them
  • Quantities must be added with Add Ifc Quantities to Selection plugin ( https://sketchucation.com/plugin/2599-addifcquantities )
  • That the model should be saved and should have a name.

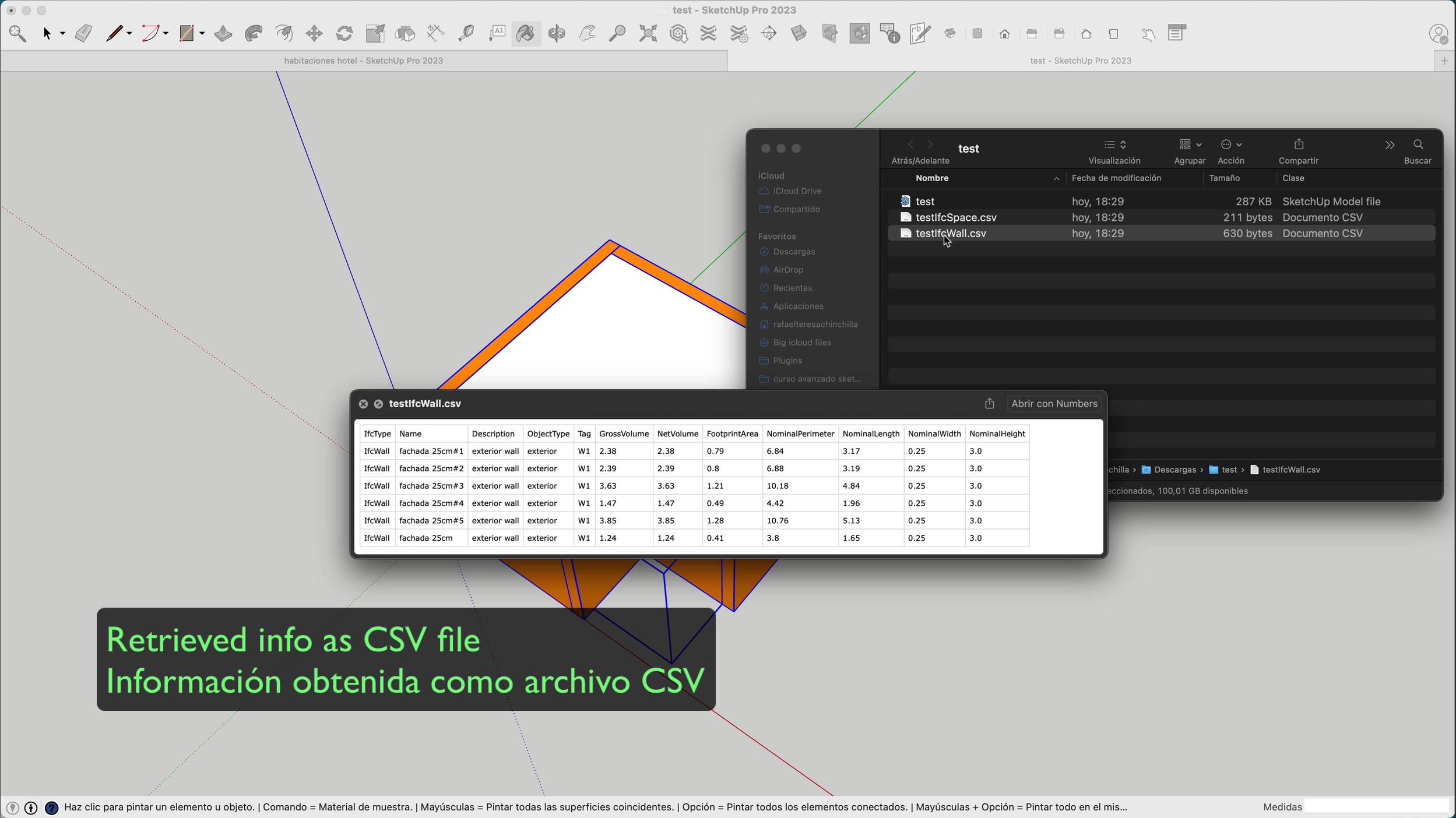

The information is stored in the same folder and a CSV file is generated per IFC category.

Esta extensión exporta la informacion añadida a los elementos del modelo a archivos CSV en forma de tablas de planificación o de cantidades.

Las tablas se pueden insertar en Layout para mejorar nuestros dibujos.

Para que se exporte la información es necesario:

  • Que los elementos sean componentes
  • Que tengan una categoría IFC asignada
  • Que se añadan las cantidades con el plugin Add Ifc Quantities to Selection https://sketchucation.com/pluginstore?pln=AddIFCQuantities
  • Que el modelo esté guardado y tenga un nombre

La información se almacena en la misma carpeta y se genera un archivo CSV por categoría IFC.

Release Notes for Layout Export Tables

1.1 Solved a bug when there is no IfcTag parameter in Ifc 2x3
