Add IFC Quantities lets you to add Component dimensions of selected items to their IFC dictionaries in order to export your model as an IFC file.

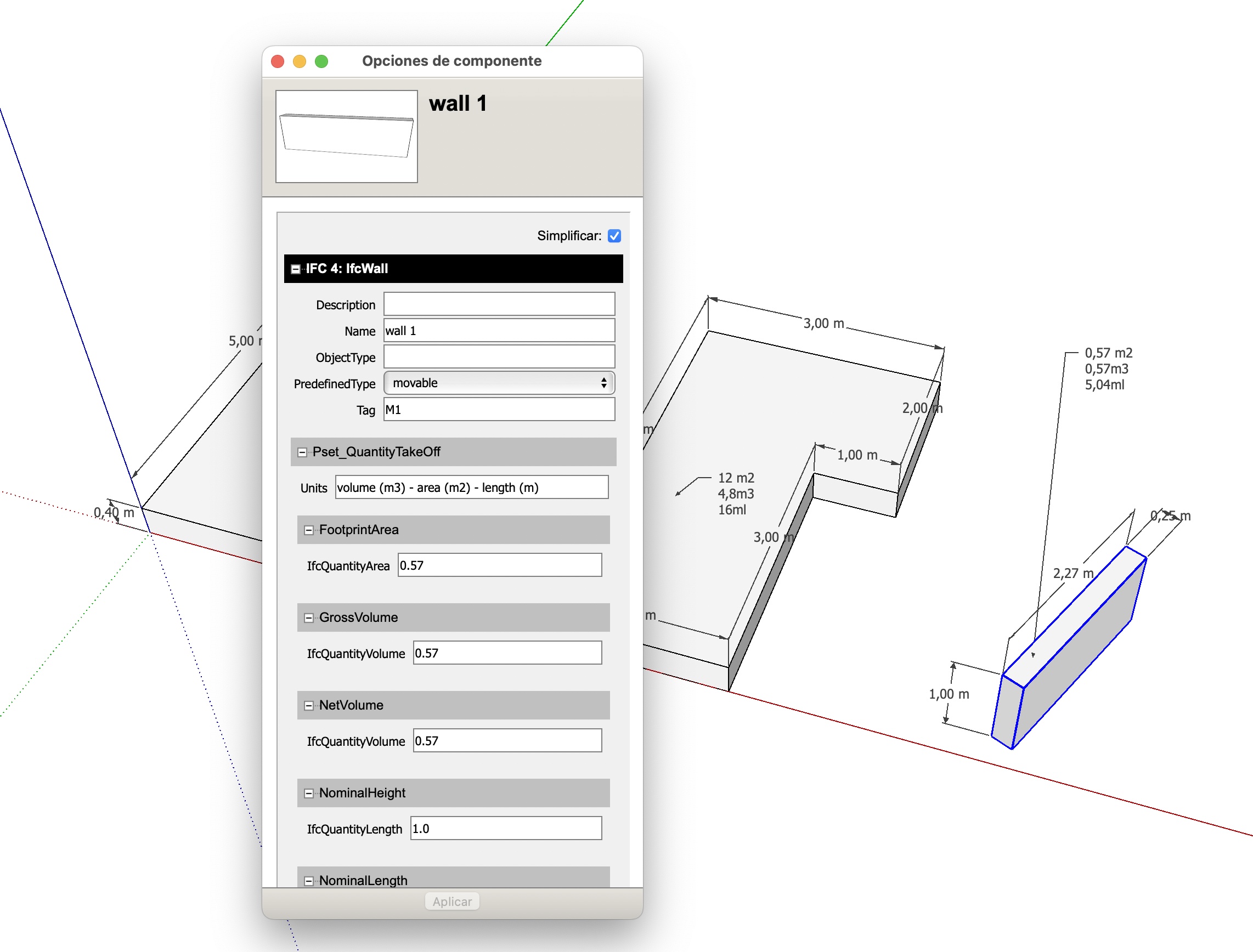

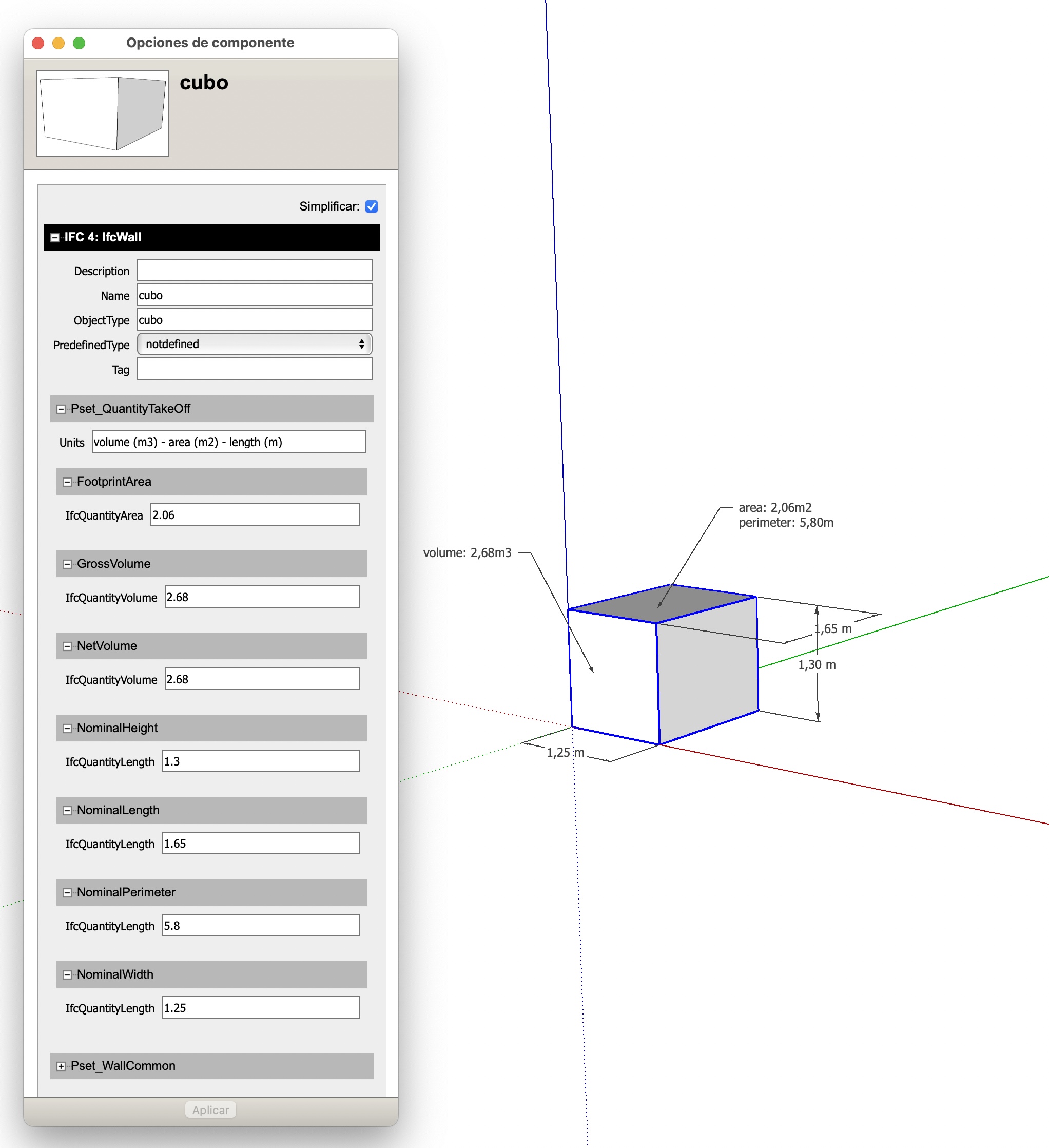

Resulting parameters are inside Pset_QuantityTakeOff:

- Units: units considered

- FootprintArea: Area of the largest horizontal area

- NominalPerimeter: Perimeter of the largest horizontal area

- GrossVolume: Volume of the Boundingbox

- NetVolume: Net volume if solid

- NominalHeight: Height of the Boundingbox

- NominalLength: Largest dimension of length x or y

- NominalWidth: Dimension smaller than length x or y

You can set IFC attributes as Name, Object Type, Description and Tag It works with Ifc 2x3 or Ifc 4.

If you export your model to IFC with Ifc Manager ( https://github.com/BIM-Tools/SketchUp-IFC-Manager ) Pset are exported and can be read by Ifc viewers or Trimble Connect viewer.

How to use:

Many thanks to Dan Rathbun for his help with rotated components.

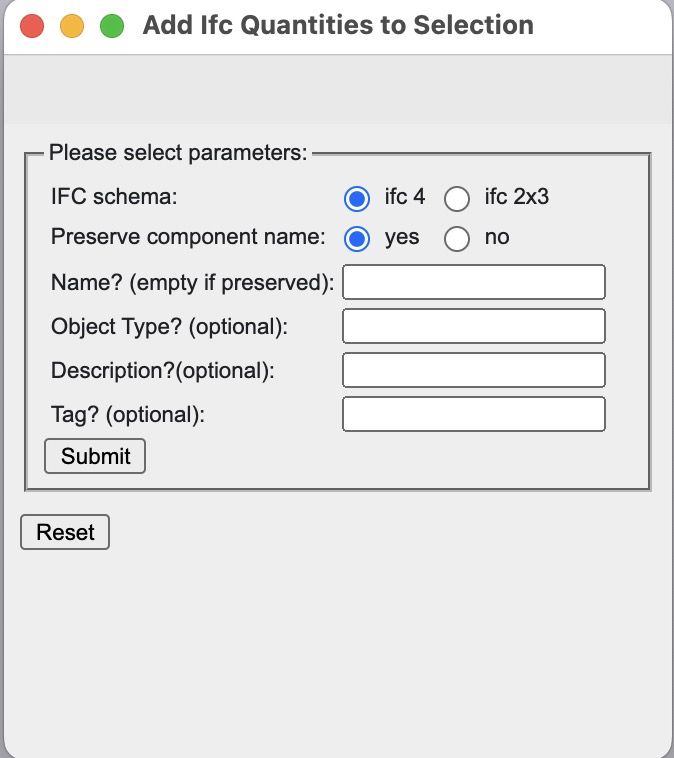

In this third version of the extension, New html input window

Component dimensions of selected elements are added to their IFC dictionaries.

Resulting parameters are:

Pset_QuantityTakeOff:

- Units: units considered

- FootprintArea: Area of the largest horizontal area

- NominalPerimeter: Perimeter of the largest horizontal area

- GrossVolume: Volume of the Boundingbox

- NetVolume: Net volume if solid

- NominalHeight: Height of the Boundingbox

- NominalLength: Largest dimension of length x or y

- NominalWidth: Dimension smaller than length x or y Component Name can be preserved
