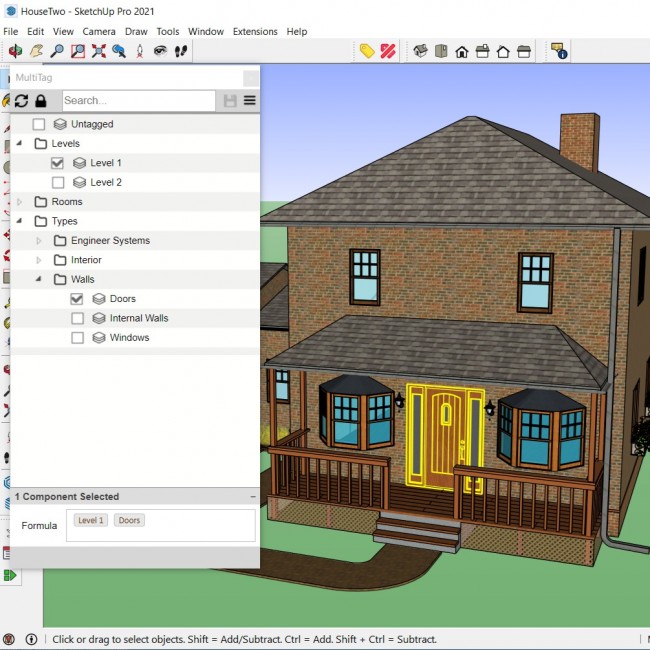

The extension for Sketchup get more flexible control the visibility of objects when developing complex models, such as houses, apartments with engineering networks (water supply, electricity, etc.) adding ability to assign to entity multiple tags and control visibility using logical formula between several tags

By default all selected tags use AND condition: so object will displayed only if all tags are enabled;

Extension also allow use OR condition between layers, grouping and combination AND and OR conditions

For sample: Each wall in house can be assigned at least to two layers "room1" and "room2" and be visible when one of "room" tags enabled or Furniture can belong to both tags "room" and "type", for example "Chair" or "Table" and are displayed only when both layers are active

1.1.240531: - comability with Sketchup 2024

1.1.230903:

• added a menu command to update the visibility of objects, which can be broken in some cases (for sample: component reloaded from file)

• automatic updating of the visibility on all scenes when their visibility changes

• fix updating of the visibility on the Scenes: the status of object hiding changed to set via Hidden. Also stop use technical tag "Multitag Hidden" which was used to hide objects in earlier releases.

1.1.221217:

• added support negative expression using exclamation mark symbol "!" in forumulas

1.1.220920:

• fix: editing formula, ctrl+z not worked

• fix: incorrect window size on MacOS

• fix: compability with Sketchup 2022

1.1.220801:

• initial release
