• REQUIREMENTS

Sketchup version: SU2017 or above
Platform: Windows or Mac(osx)
Usage: Free/OpenSource
Language: English
Menu path: Extensions > Tax_Engineering
Toolbar: Tax Engineering

• PREVIEW IMAGES

• FEATURES

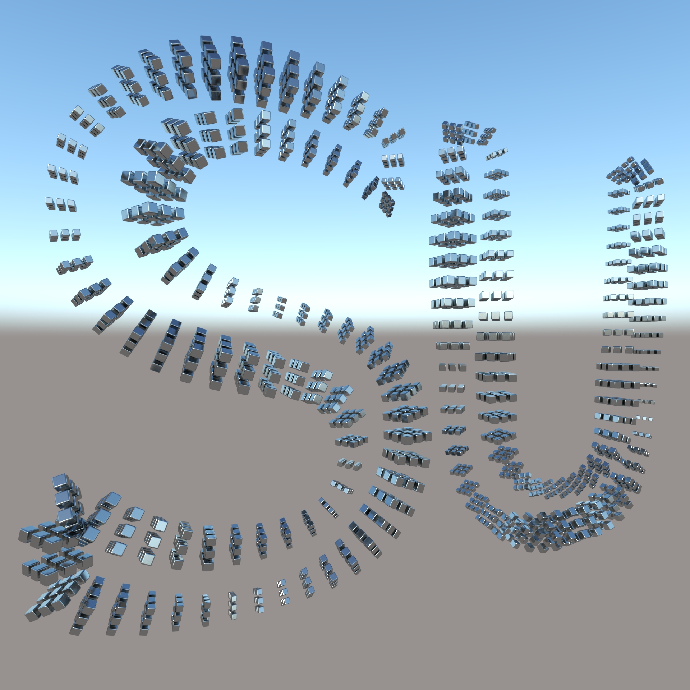

• Displacer;
• Follow Rotate Scale;
• Railway along;
• Mariner chain Along;
• Roller chain Along;
• Bicycle wheel;
• Spur gear;
• Adjustable suspension;
• Spheric helix;
• Linear helix;
• Color pallete; (color harmony tool)
• Remove materials;
• Disguise pattern;
• Agroup by loose;
• Multiple push pull;
• SU links; (SU related web links)
• Selection report;
• Vray alarm;
• Edge groups;
• Del faces.

Permission to use this software for any purpose and without fee is hereby granted.
Distribution of this software for any purpose is subject to:
1) the expressed, written consent of the author;
2) the inclusion of the present copyright notice in all copies.

• USAGE

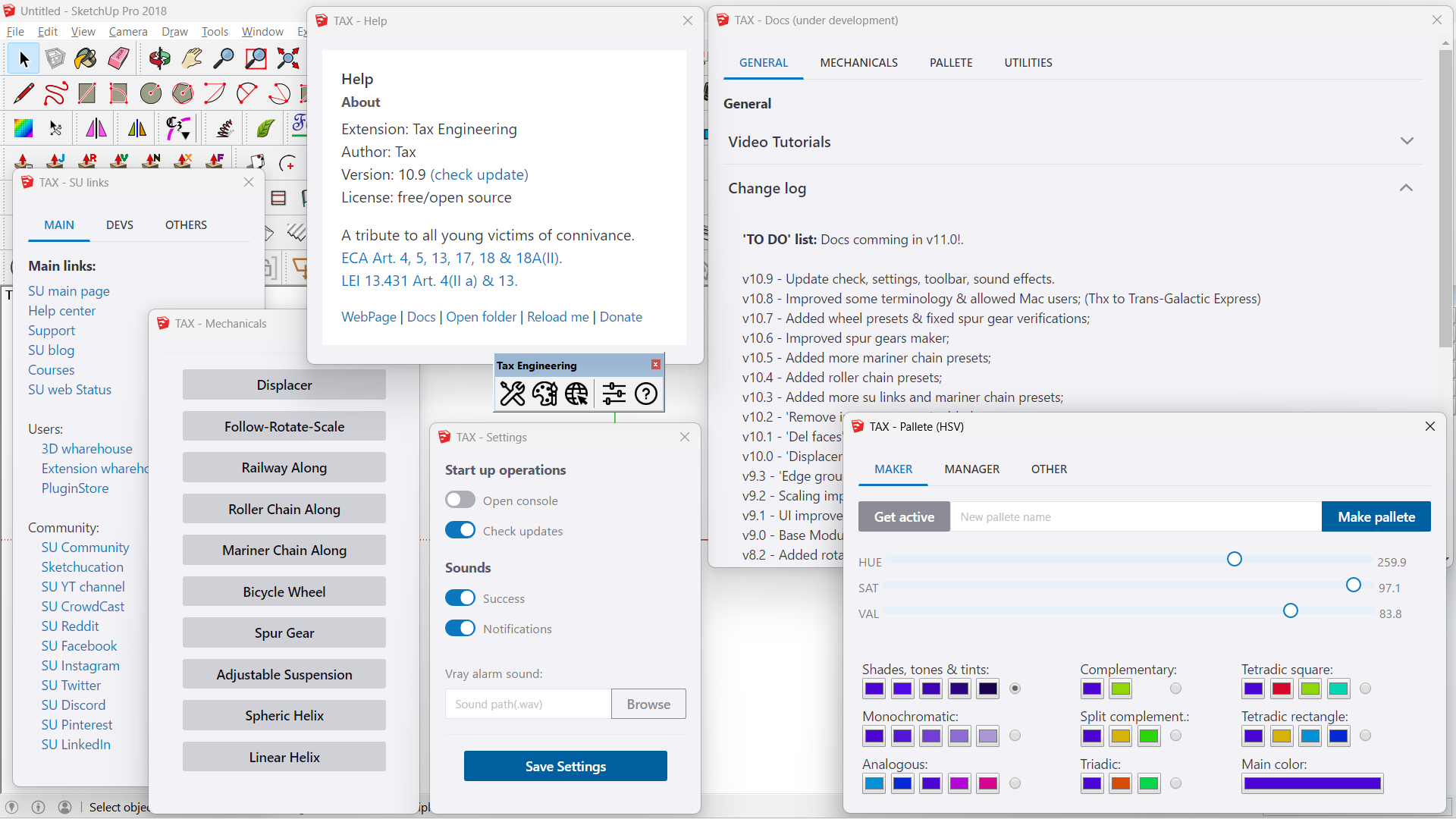

Menu path: Extensions > Tax_Engineering
Toolbar: Tax Engineering
DOCS: Help > Docs dialog

obs: Big update on docs comming in v11.0!

• CHANGE LOG

v10.92 - Contacts, toolbar icons, improved FRS +minor UX.
v10.91 - Bug fixes: update dialog, color pallete, mac alert.
v10.9 - Update check, settings, toolbar, sound effects.
v10.8 - Improved some terminology & allowed Mac users; (Thx to Trans-Galactic Express)
v10.7 - Added wheel presets & fixed spur gear verifications;
v10.6 - Improved spur gears maker;
v10.5 - Added more mariner chain presets;
v10.4 - Added roller chain presets;
v10.3 - Added more su links and mariner chain presets;
v10.2 - 'Remove instance names' added;
v10.1 - 'Del faces' added & bug fix;
v10.0 - Displacer added;
v9.3 - Edge groups added;
v9.2 - Scaling improvement (less viewport clipping) and documentation;
v9.1 - UI improvement;
v9.0 - Base Modus UI implemented;
v8.2 - Added rotation&scale phase offset, 3 up reference modes + UI & code improvements;
v8.1 - Added more interpolation modes on 'Follow Rotate Scale' and bug fixes.
v8.0 - Added Follow Rotate Scale, selection report, vray alarm, +SU links, dev shortcuts.
v7.2 - Added follow path feature for roller chain, SU Links, Selection report & bug fixes.
v7.1 - Added follow path feature for mariner chain.
v7.0 - Added color pallete, remove materials, disguise pattern, agroup by loose & multiple push pull. (+name change)
v6.3 - Forgot a piece of code used for debugging that prints a txt file on the desktop. Sorry, fixed now.
v6.2 - Bug fixes and "bicycle wheel" feature is now stable.
v6.1.b - Bug fix where rails face wasn't generated on last section in loops.
v6.0.b - Added railway along path;
v5.0.b - Added bicycle wheel and tyre;
v4.0 - Added springs, suspension and code improvements;
v3.0 - Added spur gear and code improvements;
v2.0 - Added roller chain;
v1.0 - Mariner chain.
