MAJ Wall     v1.0.5

  • Overview
  • Quick Start
  • Documentation
  • Release Notes

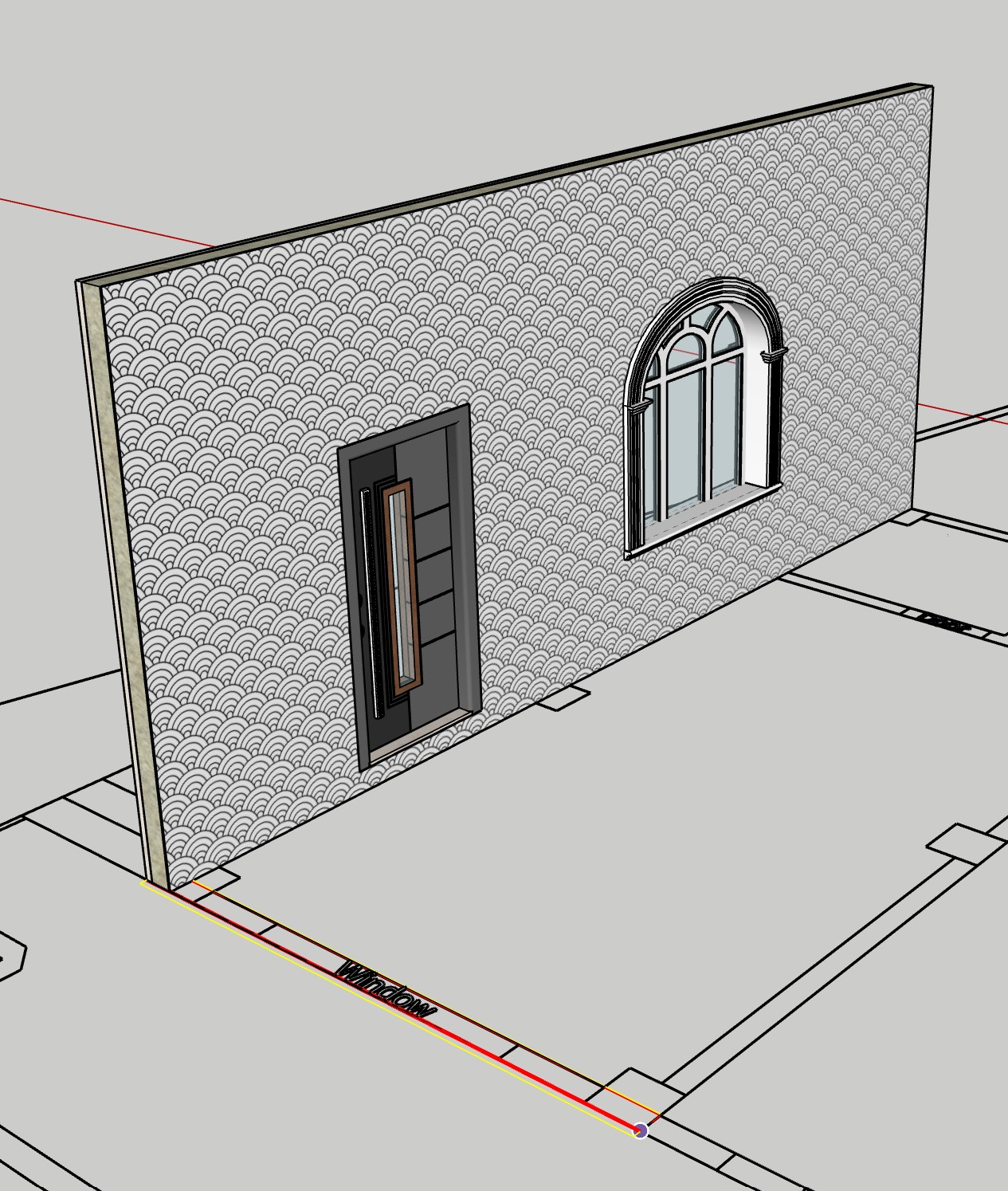

Make a wall with unlimited breakpoints. First, this plugin asks you for some basic information about wall, finishing, and interior (height, width, ...) then you can select wall breakpoints and double click at the end. Wall will make 3 layers. You can change (Mirror) wall drawing direction during drawing wall by pressing "Left / Right Keys". "Finishing layer" for outdoor wall cover, "Interior layer" for indoor wall cover, and basic wall in "Wall layer". You will be free to use any combination of 3 layers. Also, you can add any of these layers in the future alone. Similar Walls will join together in have any intersection. You can type wall length and press enter to have its breakpoint. If you press enter twice wall will make. By pressing the "ESC" key, you can delete the last breakpoint.

https://youtu.be/tWbC7NOFegE

Make a wall with unlimited breakpoints. First, this plugin asks you for some basic information about wall, finishing, and interior (height, width, ...) then you can select wall breakpoints and double click at the end. Wall will make 3 layers. You can change (Mirror) wall drawing direction during drawing wall by pressing "Left / Right Keys". "Finishing layer" for outdoor wall cover, "Interior layer" for indoor wall cover, and basic wall in "Wall layer". You will be free to use any combination of 3 layers. Also, you can add any of these layers in the future alone. Similar Walls will join together in have any intersection. You can type wall length and press enter to have its breakpoint. If you press enter twice wall will make. By pressing the "ESC" key, you can delete the last breakpoint.

This plugin can be a good start for future plugins. Use "MAJ Door" or "MAJ Window" to cut 3 layers of this wall and make a door/window on it. 0.0.1 :: 2020-10-12 * Original release. I'm expecting some bugs and feedback. 0.0.2 :: 2020-10-22 * Slove the problem that happens when the system unit is Meter. 0.0.3 :: 2021-02-28 *Wall information will save for the next usage. 1.0.1 :: 2021-04-01 * Change 3 layers wall Materials * Adding wall direction selection * Using Sketchup status text * Rename extension to "MAJ Wall" 1.0.2:: 2021-04-21 * Point Select improvement * Solving MAC OS problem 1.0.5:: 2021-05-23 * Status Bar and Active Keys improvement. * Fully test in Windows and MAC * X Key consider for adding path points to the wall's breakpoints.
