Chaos    v1.0.3

  • Overview
  • Documentation
  • Release Notes

Bring some chaos into your SketchUp scene with Chaos randomizing script.

Chaos moves, scales and rotates selected groups/components randomly in X,Y or Z axis within range.

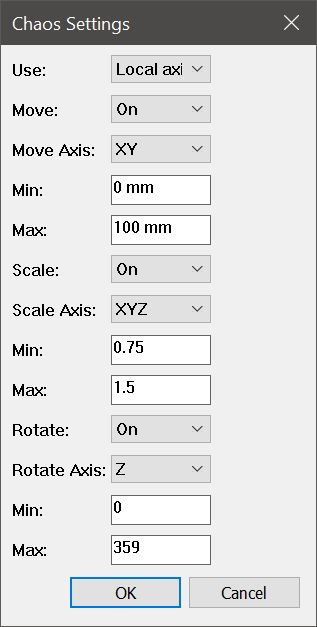

Select which Axis you want to use. Select if you want to move, scale or rotate or all of them at once.

World is the original SketchUp axis. Current is the axis if you use the Axes tool to move the axes. Local is the local axis inside each component/Group.

Transforms are made based on selected group/components origin (axis point). To make the script NOT use a random value set both min and max to the same value. Also note that those values can be negative. For example min: -100 and max 100 to make the script randomize in both positive and negative directions from the original position.

Bring some chaos into your SketchUp scene with Chaos randomizing script.

Chaos moves, scales and rotates selected groups/components randomly in X,Y or Z axis within range.

Select which Axis you want to use. Select if you want to move, scale or rotate or all of them at once.

World is the original SketchUp axis. Current is the axis if you use the Axes tool to move the axes. Local is the local axis inside each component/Group.

Transforms are made based on selected group/components origin (axis point). To make the script NOT use a random value set both min and max to the same value. Also note that those values can be negative. For example min: -100 and max 100 to make the script randomize in both positive and negative directions from the original position.

1.0 First release. 1.0.1 Fixed typo so now Move works as it should. 1.0.2 Fixed another small typo. 1.0.3 Fixed a bug in rotation.
