Requirements

• LibFredo6: v14.5 or above Download Libfredo
• Sketchucation Tools v4.4.1 or above Download Sketchucation Tools
• SketchUp 2017 and above
• Platform: Windows and Mac OSX
• Licensed under Sketchucation SCFLicense (Free)

Overview

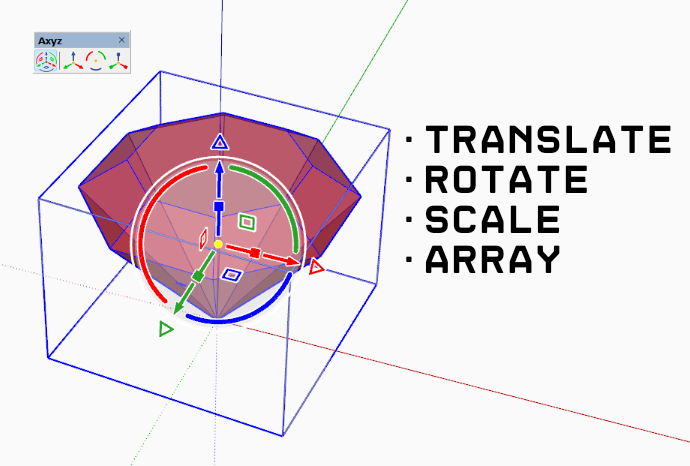

Perform transformation on selected objects with a Widget: Translation, Rotation, Scaling, Mirror

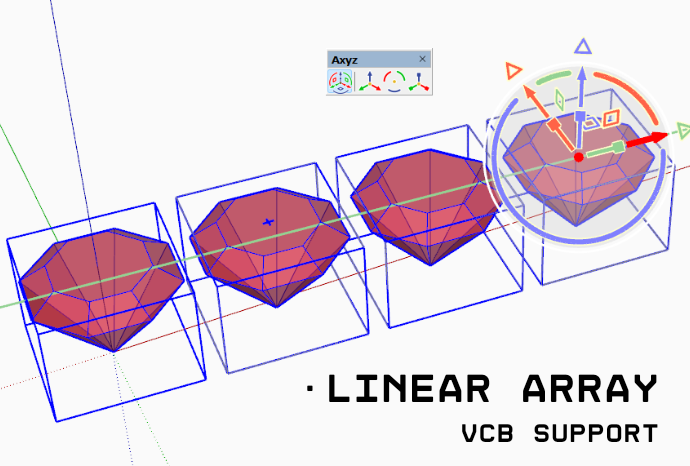

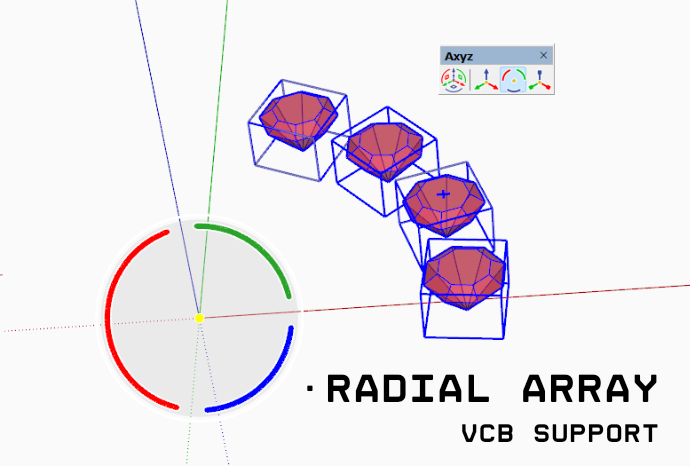

Manipulates Guides, Edges, Faces, Images, Groups and Components Position Widget in the model by a simple Click or inferencing Transformation (translation, rotation, scaling, mirror) by Click-Drag on a widget handles Post-transformation adjustments via VCB and modifiers (copy and multiples, distance, angle, scale factors)

Documentation

Help is integrated in the extension, as a Quick Card.

Keybindings

• TAB to cycle transformations
• ALT to cycle global, local or current context axes
• SHIFT to cycle individual centers
• CTRL to cycle copy mode
• ARROW to cycle nudge mode

Activate tool in SketchUp

Press SHIFT + / to type ? in VCB and hit ENTER

Axyz Quickcard will open

View the full YouTube Quickcard Playlist: HERE

1.1a

• fixed the issue of Divide (ex: 3/) for Rotation

Initial release

1.0
