Select, Press, Set , Place

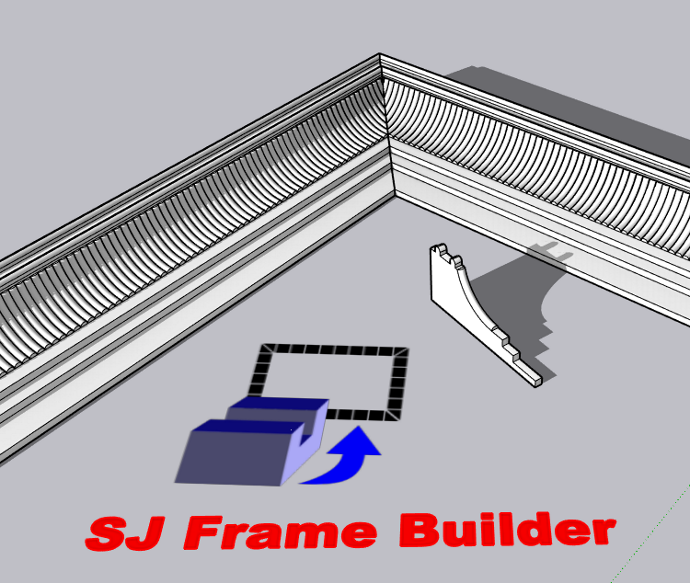

Create a frame from a repeated component

First select a component, Clic on the SJ Frame Builder toolbar button, or Plugin > SimJoubert Tools > Sj Frame Builder menu A dialog invites you to set the name of the future frame component and his dimensions. Placet the new frame in your model

This updated version doesn't require Booleans opération. You don't need Sketchup Pro version !

V 1.1.0 2024/12/06 Rewriting to do without Boolean operation The subtraction was imprecise It limited users to the pro version of Sketchup Now the plugin can be used on all versions. On complex forms it is advisable to repair some faces

V 1.0.0 2024/12/01 Translated into French and English. If you would like to translate it into your native language, please contact me, it will be a pleasure.
