BGSketchup_Library required.Click here to download it

This plugin allows you to raise the bill of material (nomenclature) of components in your model.
Ce plugin vous permet de faire la nomenclature des composants de votre dessin.

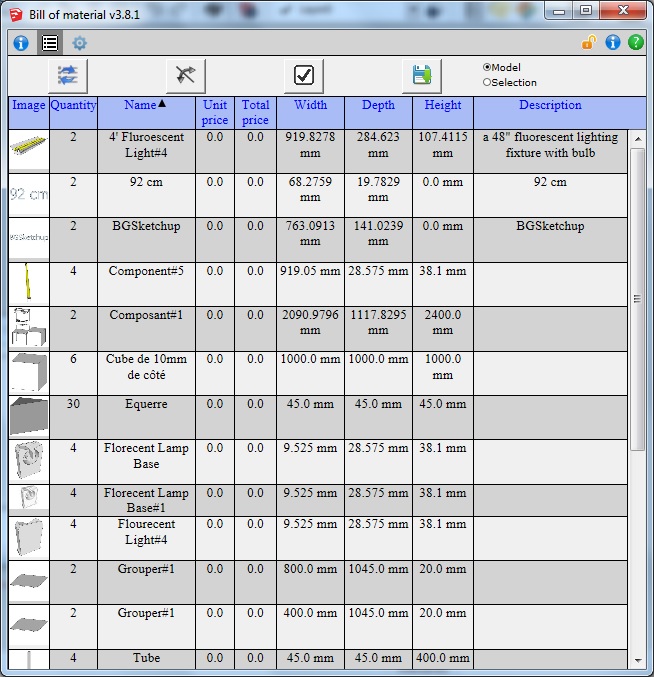

It open a new window with the list inside. You can export it in CSV or html file.
Il ouvre une nouvelle fenêtre permettant d'avoir la nomenclature. Vous pouvez l'exporter en CSV ou html.

Please report any bug or missing feature to bg.sketchup@gmail.com.
Merci d'envoyer vos bugs ou les fonctions que vous voudriez à bg.sketchup@gmail.com.

Note : by using this plugin you accept to send anonymous data for statistics purpose.
These data are explicitely : User unique identifier, plugin name, plugin version, selected language, SU version, operating system, Sketchup licence (free/pro)

ENGLISH:
1- Create your model using components

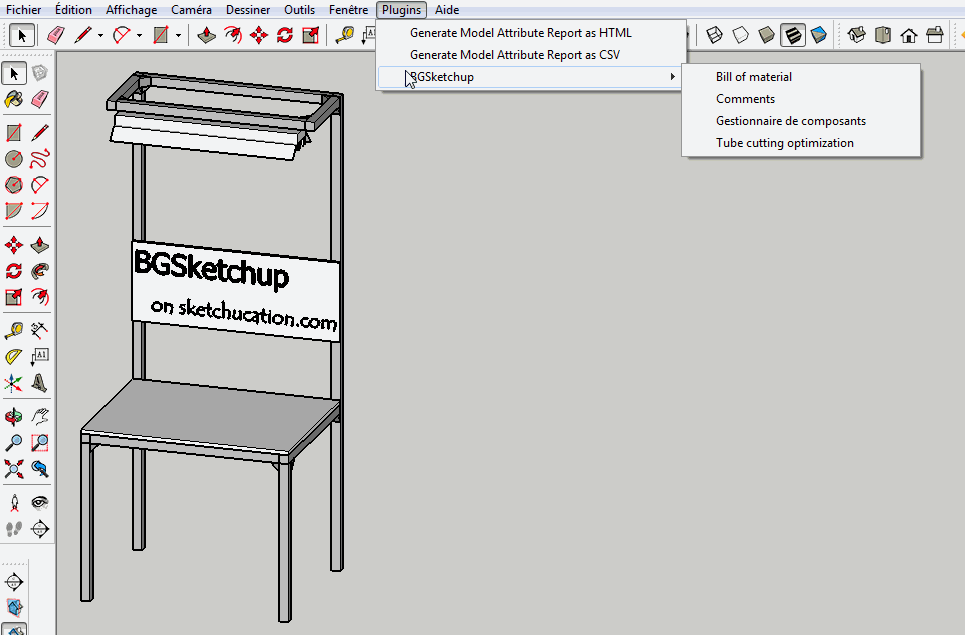

2- Launch the plugin : Plugins => BGSketchup => Bill of material
3- Enter parameters
4- Click on Calculate/Refresh and raise the bill of material !

FRENCH :
1- Créer votre dessin en utilisant des composants
2- Lancer le plugin : Plugins => BGSketchup => Nomenclature 3- Entrer les paramètres (tout le dessin/uniquement dans les objets sélectionnés)
4- Cliquer sur "Calculate/Refresh" et vous avez la nomenclature !

See help file in the plugin Merci de vous reporter à l'aide incluse dans le plugin

Version history:

2.0.5   Corrected : Scrollbars added

2.0.4   Optimized : Add plugin version in javascript error
        This version requires BGSketchup_Library 2.0.5

2.0.3   Corrected : webdialog changed from php to html for MAC users

2.0.2   OPTIMIZED : Some code optimisation
        OPTIMIZED : Some code correction to respect extension warehouse rules.
        This version requires BGSketchup_Library 2.0.1

2.0.1   OPTIMIZED : Activation management
        This version requires BGSketchup_Library 1.5.1

2.0.0 : ADDED :     Possibility to add prices in BOM (activation required)
        OPTIMIZED : Avoid changing filters and sorts when updating the bill of material
        OPTIMIZED : When choosing to display or not the description or dimensions, the BOM is updated automatically
        OPTIMIZED : When selecting component in BOM, the entity info remains displayed
        OPTIMIEZD : Component name shown in blue in BOM when mouse is over
        CORRECTED : Changing name to empty string or when selecting something else than a component raised an error.
        CORRECTED : Now clear entity info when nothing is selected (not just hidden).
        CORRECTED : Issue with javascript may not be reported in some case (coma dot)
        This version requires BGSketchup_Library 1.5.1

1.9.4 : CORRECTED : Error in CSV export for return to line characters

1.9.3 : CORRECTED : Issue with return to line in description.
        OPTIMIZED : Improve javascript error management (showing ruby code)
        OPTIMIZED : New javascript error management for better debugging
        OPTIMIZED : Return to line in description are also show in BOM
        This version require BGSketchup_Library 1.4.0

1.9.1 : CORRECTED : Avoid having errors raising when plugin is closed.

1.9.0 : ADDED :     Toolbar is grouped with other BGSketchup plugins toolbars
        ADDED :     ini folder now added as statistics.
        CORRECTED : Translations interferred with other plugin of mine.
        This version require BGSketchup_Library 1.2.0

1.8.2 : Non offical version to display data for Chris issue

1.8.1 : CORRECTED : Error with description with return to line inside or some special characters
        OPTIMIZED : Russian language added (thanks Yura)

1.8.0 : ADDED :     Plugin window now shows components' name and description
        ADDED :     Column description added

1.7.1:  CORRECTED : Restore hand pointer on component name to select instances in model

1.7.0:  ADDED :     Show lengthes in same colors than axis (in window and HTML exports)
        REQUIRED :  BGSketchup_Library v1.1.1
        CORRECTED : Change link to download new version of plugin
        CORRECTED : Error when exporting in HMTL format
        OPTIMIZED : Matrix design when exporting in HTML format
        OPTIMIZED : Improved prompt for version of BGSketchup_Library

1.6.6:  OPTIMIZED : Better prompt message in case library is too old.

1.6.5:  OPTIMIZED : Checking of BGSketchup_Library added.

1.6.4:  CORRECTED : Another trial to solve special characters convertion.

1.6.3:  CORRECTED : Error that could appear on MAC when exporting from model not saved.
        CORRECTED : Prevent error when exporting in file blocked

1.6.2:  CORRECTED : Error for update display.

1.6.1:  CORRECTED : CSV format export didn't work properly on non-french system.

1.6.0:  ADDED :     Add a toolbar (with option to show it or not)
        ADDED :     Chinese language added
        OPTIMIZED : Link for update in new browser window, not in sketchup window
        OPTIMIZED : Menu is now in your favorite language
        OPTIMIZED : Help file update for version 1.6.0
        CORRECTED : Change csv export in UTF-8 format to avoid language special characters issue.
        CORRECTED : Files saved in UTF-8 to avoid error in China language

1.5.0:  ADDED :     Add options not to show hidden component instances
        ADDED :     Prompt if my language translation has been added.
        OPTIMIZED : Change some codes for the warehouse => BGSketchup_Library plugin required !!
        CORRECTED : Error in language management

1.4.0:  OPTIMIZED : Change plugin folder configuration to respect Extension store rules

1.3.0:  ADDED :     Show selection size (for component and group) in plugin status bar
        OPTIMIZED : Clear the list when changing model

1.2.0 (20/09/2014): ADDED :     Select objects in model when clicking on name in list in plugin window
        ADDED :     Change background color each line for more readability

1.1.1 (14/09/2014): CORRECTED : Big issue on quantities : units set the quantity completely wrong ! Now solved.

1.1.0 (06/09/2014)  ADDED :     Sort function on column heads
        ADDED :     New about box
        OPTIMIZED : change prompt for new version.
        OPTIMIZED : reduce Html & javascript code

1.0.0: Initial release
